Vishay MPM and MPMT Thin Film Resistor Networks
Vishay MPM and MPMT Thin Film Resistor Networks provide ±2ppm/°C tracking and a ratio tolerance of ±0.01%. These resistor networks are compact in size and exhibit high stability, which makes them suitable for surface-mount applications. The MPM and MPMT series come in a lead-free design and conform to the JEDEC TO-236 package, variation AB for standardization. MPM and MPMT resistor networks feature a silicon substrate for reliability and longevity and a passivated nichrome resistive element for high performance. These surface mount driver networks operate within a temperature range from -55°C to +125°C, with a resistance range from 250Ω to 100kΩ per resistor. Typical applications include filter networks, ADCs, DACs, and voltage driver circuits.
Features
- Conforms to JEDEC TO-236 package, variation AB
- Lead-free design
- Long-term ratio stability: ΔR ±0.015% over 2000 hours at +70°C
- Low TCR tracking: ±2ppm
- Molded epoxy body for robust construction
- Offers flexibility with an optional zero-ohm jumper configuration
- Passivated nichrome resistive element for superior performance
- Ratio tolerances up to ±0.01%
- Silicon substrate material ensures reliability and longevity
- Tin Lead option available with Sn85 alloy for traditional preferences
Applications
- Analog-to-Digital Converters (ADCs)
- Digital-to-Analog Converters (DACs)
- Filter networks
- Operational Amplifier (Op-Amp) circuits
- Precision voltage references
- Sensor signal conditioning
- Voltage divider circuits
- Wheatstone bridge configurations
Technical Specifications
| Parameters | Values |
|---|---|
| Maximum working voltage | 100V |
| Noise | <-30dB |
| Operating temperature range | -55°C to +125°C |
| Power rating | 100mW (resistor) 200mW (package) |
| Resistance range | 250Ω to 100kΩ per resistor |
| Voltage coefficient | 0.1ppm/V |

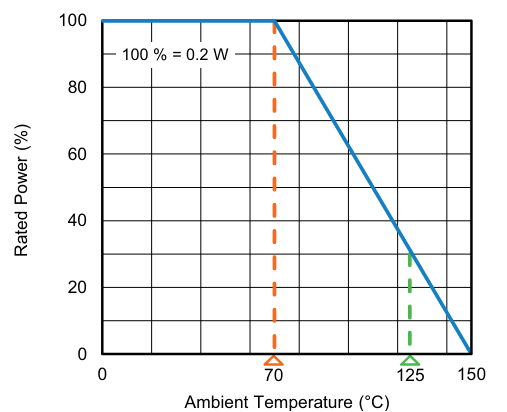

MPM and MPMT Thin Film Resistor Networks Derating Curve
