Vishay Industrial Power Through-Hole Wirewound Resistors

Tubular (FST, FVT) - Wirewound Resistors, Industrial Power
Vishay Huntington FST and FVT wirewound resistors feature an enamel or silicone coating with power ratings between 5 Watt and 225 Watt. FST and FVT resistors are available in standard or non-inductive options with resistances between 0.10 Ω to 651 kΩ. (View FST Datasheet) | (View FVT Datasheet)
Check Inventory - FST

Check Inventory - FVT

Printed Circuit Mounted (FS) - Wirewound Resistors, Industrial Power
Vishay Huntington FS printed circuit board mount resistors feature a silicone coating with power ratings between 3 Watt and 16 Watt. FS resistors are specifically designed to eliminate side to side rocking and ensure proper standoff from the board. These resistors are available in standard or non-inductive options with resistances between 0.1 Ω to 95 kΩ. (View Datasheet)
Check Inventory

Fixed Edgewound Tubular (FSE, FVE) - Wirewound Resistors, Industrial Power
Vishay Huntington FSE and FVE wirewound resistors feature enamel or silicone coating with power ratings between 50 Watt and 1500 Watt and resistances of 0.1 Ω to 151 Ω. These resistors feature great power to size ratio and can handle short term overloads of 10 x rated power for 5 seconds. (View FSE Datasheet) | (View FVE Datasheet)
Check Inventory - FSE

Check Inventory - FVE

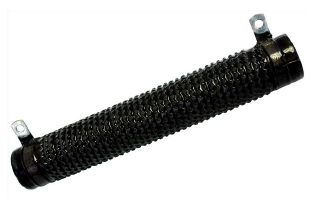

Fixed Ribwound Tubular (RBEF, RBSF) - Wirewound Resistors, Industrial Power
Vishay Milwaukee RBEF and RBSF enamel or silicone wirewound resistors are available as individual resistive element between 40 Watt and 2000 Watt with resistances between 0.281 Ω to 391 Ω. RBEF and RBSF resistors are also available in load banks up to 8 kWatt. Custom designs including application specific brackets, wire leads and connectors are upon customer request. (View Datasheet)
Check Inventory - RBEF

Check Inventory - RBSF

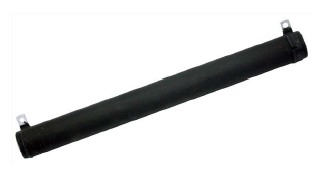

Fixed Roundwire Tubular (RDEF, RDSF) - Wirewound Resistors, Industrial Power
Vishay Milwaukee RDEF and RDSF wirewound resistors feature enamel or silicone coating with power ratings between 8 Watt and 1150 Watt. RDEF and RDSF resistors are available in standard or non-inductive options with resistances between 0.12 Ω to 227 kΩ. (View Datasheet)
Check Inventory

Check Inventory

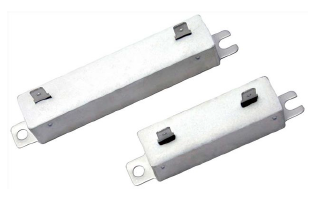

Metal Case (MCR) - Wirewound Resistors, Industrial Power
Vishay Milwaukee MCR metal case wirewound resistors are heat sink mountable with power ratings up to 125 Watt. MCR resistors are potted in high temperature cement offering a compact design with a dielectric withstanding voltage of up to 1500 VRMS. Custom designs are available upon request and include application specific wire leads and connectors. (View Datasheet)
Check Inventory

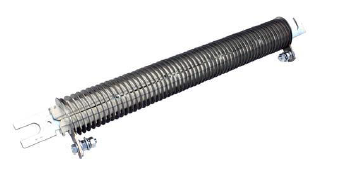

Edgewound Power Resistors (EDG) - Wirewound Resistor, Industrial Power
Vishay Milwaukee EDG resistors feature an open coil design, providing efficient heat dissipation and easy accommodation of reasonable overloads and surges. EDG resistors are available as individual resistive elements capable of 17.2A to 85A continuous duty or as load banks up to 19.2 kWatt. (View Datasheet)
Check Inventory
