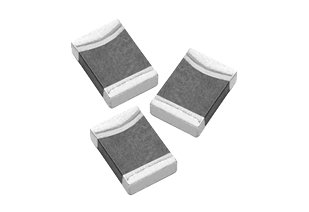

Vishay ILHB High Current Multilayer Ferrite Beads
Vishay ILHB High Current Multilayer Ferrite Beads are reliable, surface mountable, and available in a board range of case sizes. The ferrite beads operate over a temperature range from -55°C to +125°C and a voltage rating of 100V. These ferrite beads feature a nickel barrier plating, which inhibits silver migration. ILHB ferrite beads are RoHS compliant and find applications in supply voltage lines, electronic circuits, and data signal lines.
Features
- Available in multiple case sizes and surface-mountable
- Improved reliability
- Magnetically self-shielded
- Nickel barrier plating prevents silver migration
- RoHS-compliant and halogen-free
Applications
- Data signal lines
- Electronic circuits
- Supply voltage lines
Technical Specifications
| Parameters | Values |
|---|---|
| Voltage rating | 100V |
| Operating temperature range | -55°C to +125°C |
| Maximum DC resistance |
0.09Ω |
| Maximum DC current rating | 6000mA |
| Impedance tolerance | ±25% |
