Samtec TSW PCB Header Strips

Samtec TSW PCB Header Strips are through-hole, square post headers designed on a 2.54 mm (.100″) pitch, offering flexible configurations with single, double, triple, and quad-row options. The TSW header strips support a maximum operating temperature of +125°C and a maximum voltage rating of 550VAC. Typical applications include board-to-board, cable-to-board, automotive, and industrial.

Features

Gold or tin plating options
High-temperature option available
High voltage capability
Multiple row configurations
Straight and right-angle styles
Through-hole square post header

Applications

Automotive
Industrial
Military
Space

Technical Specifications

Parameters	Values
Maximum Operating Temperature	+125°C
Minimum Voltage Rating	550VAC
Maximum Current Rating	6.3A
Pitch	.100" (2.54mm)
Contact System	.025" (0.635mm) square post

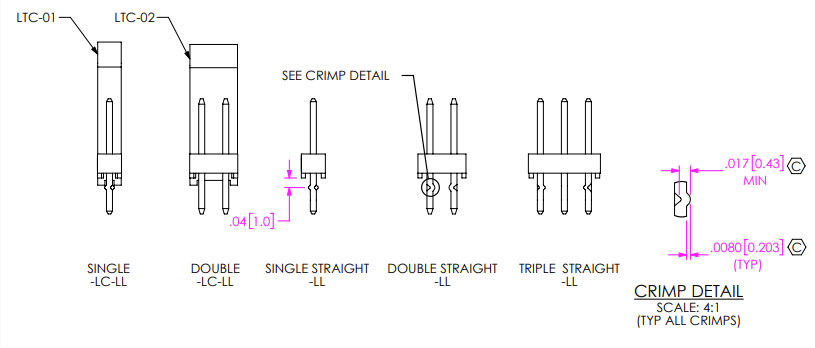

Locking Lead Diagram

Samtec Locking Lead Diagram
