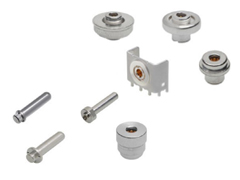

Molex Sentrality High-Current Interconnect System

Molex Sentrality High-Current Interconnect System provides design flexibility and high electrical performance for various requirements. These systems feature a compact conical socket design that supports co-planar, offset-planar, and reverse-planar mating configurations for improved alignment and reduced tolerance issues. The Sentrality interconnect system offers a maximum voltage rating of 1000V and operates within a temperature range from -40°C to +125°C. Applications include data centers and industrial automation.

Features

• Allows custom pin lengths
• Compact conical socket design
• Offers flexible pin mounting options
• Provides low contact resistance
• Supports manual and automated placement
• Supports wave and reflow soldering

Applications

• Data centers:
  • Data storage units
  • Power Distribution Units (PDUs)
  • Power shelves
  • Uninterruptible power supplies
• Industrial automation:
  • AC-to-DC rectifiers
  • Battery charging stations
  • Robotics
• Telecommunication/networking:

  • Data storage units
  • Network routers
  • Servers

Technical Specifications
