ERNI MiniBridge 1.27mm Single Row Connectors

ERNI MiniBridge 1.27mm Single Row Connectors feature SSL-Lighting technology and offer space-saving connections between PCBs and decentralized function. The MiniBridge connectors are available in 4 termination variants while male connectors come in SMT, and female connectors support Insulation Displacement Connection (IDC) terminations. The male connectors come in tape and reel packages for automatic assembly whereas the cable guide of the female connector simplifies cable connection or individual wires. These 1.27mm single-row connectors operate within the temperature range from -55°C to +150°C with a contact resistance of up to 25mΩ. Typical applications include the automobile industry, mechanical engineering, medical technology, and consumer electronics.

Features

• Available terminations:
  • Right angle male - female with 90°cable outlet

  • Right angle male - female with 180°cable outlet
  • Vertical male-female with 90°cable outlet

  • Vertical male-female with 180°cable outlet
• Cable types:
  • Ribbon cable, grid-patterned cable, discrete wire, and round cable
• Easy assembly:
  • Pick-and-place cover for automatic assembly with a vacuum pipette
  • Reliable retention force due to ruggedized metal clips on both sides of each male.
• Guiding elements
• Interlocking:
  • Friction lock (black), (normal vibration/shock load) unlockable without any tool
• SSL-Lighting technology

Applications

• Automotive:
  • BMS
  • Charging systems
  • Control systems
  • Lighting exterior and in-cabin
• LED lighting
• Medical:
  • Portable X-ray machines
  • Wearable and wireless EEG equipment
• Transportation:
  • Aerial vehicles
  • Autonomous
  • E-bikes

Technical Specifications

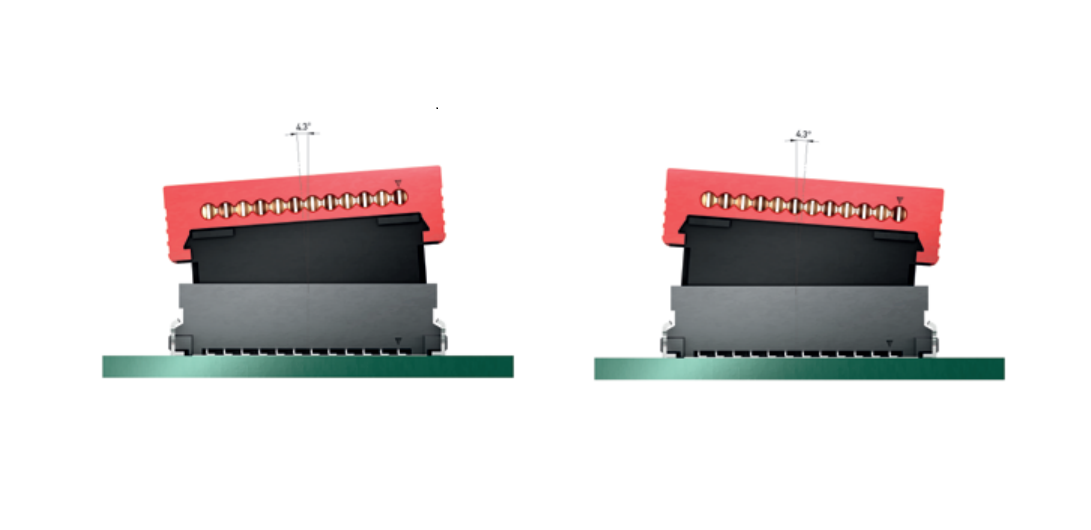

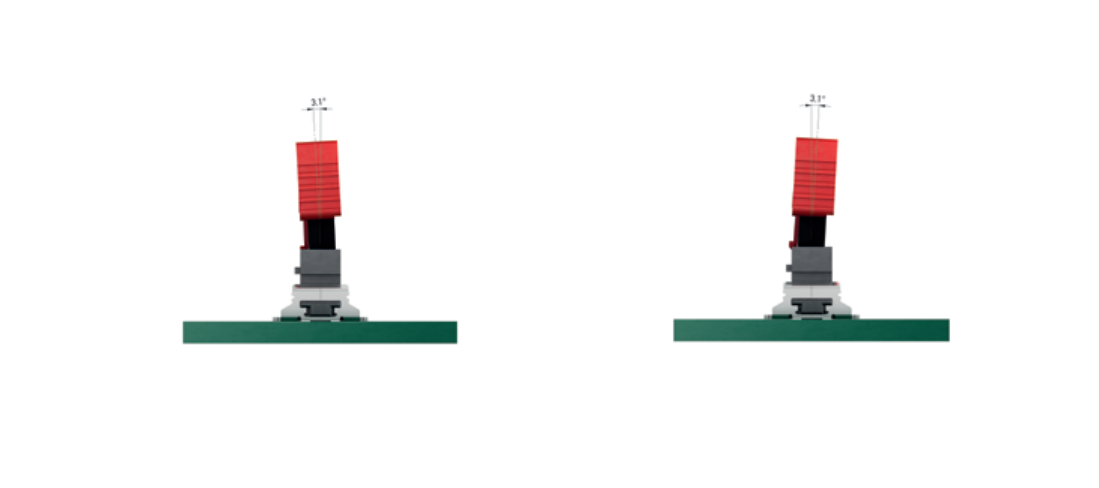

MiniBridge 1.27mm Single Row Connectors Mating Conditions
