Dialight LED Panel Mount Indicator 559 Series
The Dialight LED Panel Mount Indicator 559 Series is a snap-in LED with a .250" (6.35mm) mounting hole and is available with AlInGaP and InGaN technology. The 559 series LED panel mount indicators are ideal for high brightness applications, bicolor and integral resistors. These indicators are RoHS compliant and available in a variety of colors.
Features
- RoHS compliant
- Some available in diffused, non-diffused, and low current diffused
- Three termination options:
- Straight terminals
- 24 AWG 6" wire leads
- 24 AWG 14" wire leads
Applications
- Communications Testing Equipment
- Data-center Infrastructure (Servers and Storage)
- Electronic Test & Measurement Instruments
- Fan tray assemblies
- Hand held Devices
- Next-Gen Wireless Infrastructure
Technical Specifications
| Parameter | Value |
|---|---|
| Mounting Hole Size | 0.249 – 0.252" (6.32 – 6.40 mm) |
| Max Panel Thickness | 0.031 – 0.062" (.787 – 1.57 mm) |
| Mounting Torque | N/A |
| Voltage Options | 1.6 – 2.3 V DC typical (resistor required) 5, 12, 24V DC (no resistor required) |
| Storage Temperature | -55 °C to +100 °C (-67 °F to +212 °F) |
| Electrical Connection | Straight terminals for wire wrapping or 24 AWG lead wire |
| Housing | Black—UL94V-0 and enhances LED contrast |
| Wire Leads | 6" or 14" |

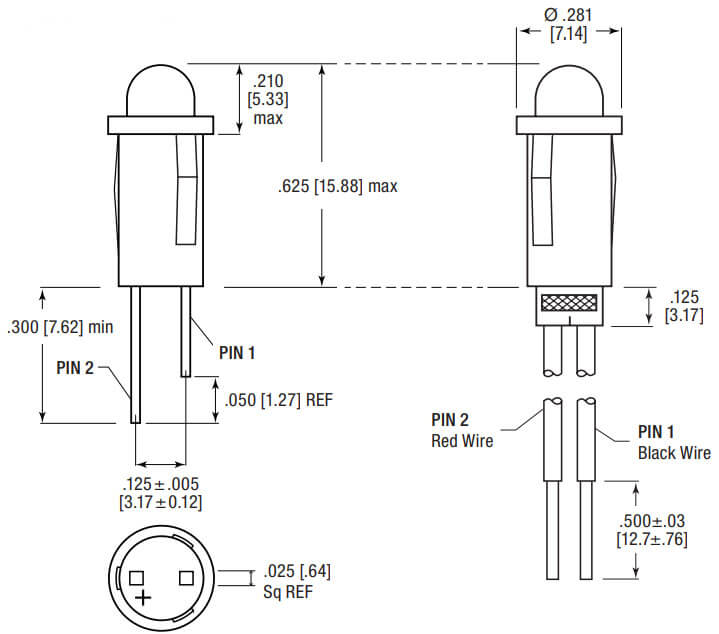

Product Dimensions
Dimensions in inches [mm]
