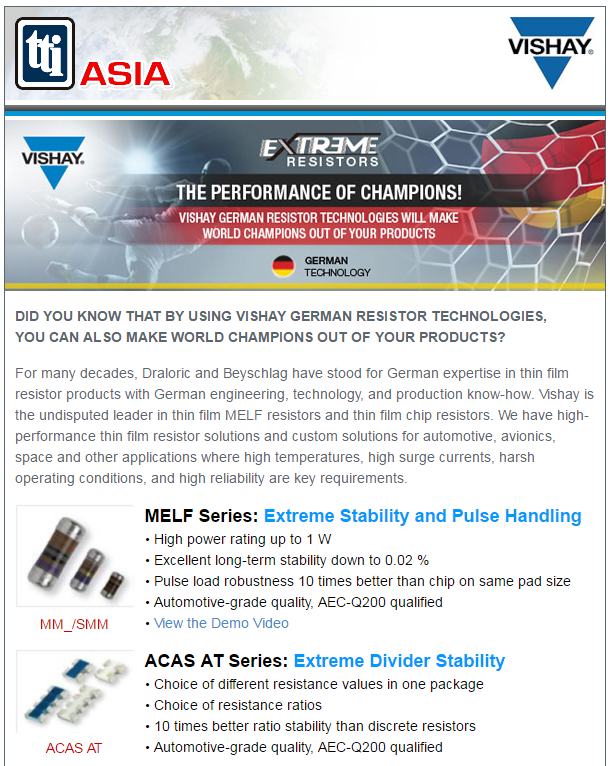

DID YOU KNOW THAT BY USING VISHAY GERMAN RESISTOR TECHNOLOGIES,
YOU CAN ALSO MAKE WORLD CHAMPIONS OUT OF YOUR PRODUCTS?
For many decades, Draloric and Beyschlag have stood for German expertise in thin film resistor products with German engineering, technology, and production know-how. Vishay is the undisputed leader in thin film MELF resistors and thin film chip resistors. We have high-performance thin film resistor solutions and custom solutions for automotive, avionics, space and other applications where high temperatures, high surge currents, harsh operating conditions, and high reliability are key requirements.
MELF Series: Extreme Stability and Pulse Handling
• High power rating up to 1 W
• Excellent long-term stability down to 0.02 %
• Pulse load robustness 10 times better than chip on same pad size
• Automotive-grade quality, AEC-Q200 qualified
View the Demo Video
MM_/SMM
ACAS AT Series: Extreme Divider Stability
• Choice of different resistance values in one package
• Choice of resistance ratios
• 10 times better ratio stability than discrete resistors
• Automotive-grade quality, AEC-Q200 qualified
ACAS AT
CRCW HP Series: Extreme Power and Pulse Handling
• 2 times higher power in same package
• 5 times higher pulse robustness
• AEC-Q200 qualified
CRCW HP
MC AT Series: Extreme Power and Temperature Handling
• Precision resistor with maximum operating temperature of 175 °C
• 50 % higher power rating than standard components
• Extreme pulse load performance
• Automotive-grade quality, AEC-Q200 qualified
MC AT
TNPU e3 Series: Extreme Accuracy
• 0.02 % tolerance, 5 ppm/K
• Best-in-class long term stability: < 0.05 %
• Automotive-grade quality, AEC-Q200 qualified
TNPU e3
  Vishay Draloric/Beyschlag Resistors - 80 Years of Experience in Resistor Technology
