Extreme Resistors - The Performance of Champions
Spacer
Spacer

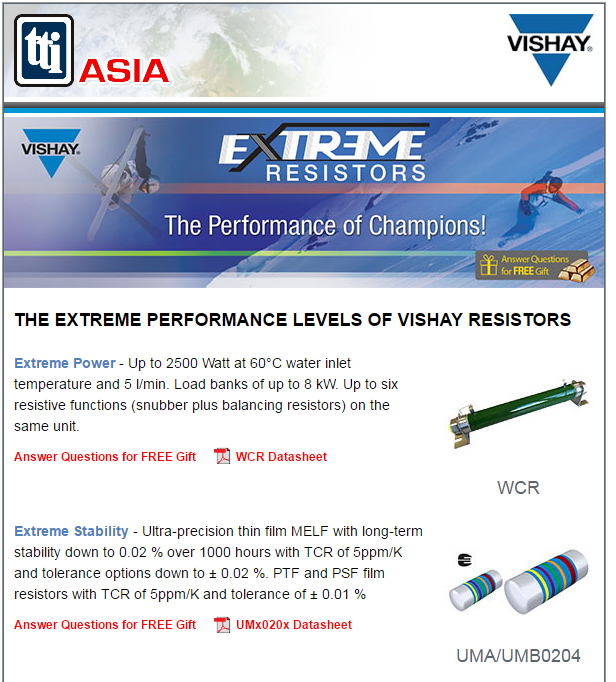

THE EXTREME PERFORMANCE LEVELS OF VISHAY RESISTORS
Spacer
Extreme Power - Up to 2500 Watt at 60°C water inlet temperature and 5 l/min. Load banks of up to 8 kW. Up to six resistive functions (snubber plus balancing resistors) on the same unit.
Spacer
Answer Questions for FREE Gift PDF Icon WCR Datasheet
Spacer
WCR
Spacer
Extreme Stability - Ultra-precision thin film MELF with long-term stability down to 0.02 % over 1000 hours with TCR of 5ppm/K and tolerance options down to ± 0.02 %. PTF and PSF film resistors with TCR of 5ppm/K and tolerance of ± 0.01 %
Spacer
Answer Questions for FREE Gift PDF Icon UMx020x Datasheet
Spacer
Extreme Stability
UMA/UMB0204
Spacer
Extreme Temperature - 230 °C (unpowered) / 215 °C (powered) wire- bondable thin film chip resistors and resistor networks.
Spacer
Answer Questions for FREE Gift PDF Icon PRA Datasheet
Spacer
Extreme Temperature
P, PRA
Spacer
Extreme Pulse - Special carbon film MELF, with up to 4 kV single pulse capability and up to 70 W continuous pulse load capability. CMB with up to 16 kV ESD and up to 10 kV surge handling capability. Axial wirewounds offer a maximum continuous energy rating of over 100 Joules.
Spacer
Answer Questions for FREE Gift PDF Icon CMA0204 Datasheet
Spacer
Extreme Pulse
CMA0204
Spacer
Extreme Low Resistance Value - Power Metal Strip®battery shunt resistors with molded enclosures and resistance values down to 50 µΩ.
Spacer
Answer Questions for FREE Gift PDF Icon WSBM8518 Datasheet
Spacer
WSBM8518
Spacer
Extreme Versatility and Long Life - Industry's first non-contacting multiturn precision potentiometer (0-10 turns)- 50 million cycles. Programmable to any specific angle and output on customer request.
Spacer
Answer Questions for FREE Gift PDF Icon THE34 Datasheet
Spacer
Extreme Versatility and Long Life
34THE
Extreme Robustness - SMD Power Resistor: 20W, 25W (D2TO) and 100W (LTO100) at 25°C- Standard packages (D2Pak and TO-247)- AEC-Q200 qualified
Spacer
Answer Questions for FREE Gift PDF Icon D2TO20 Datasheet
Spacer
Extreme Robustness
D2TO20-D2TO35-LTO100
