 Grid - GRE1
Grid - GRE1: Available in indoor or outdoor enclosures (IP00, IP20 or IP23) these robust grid resistors can be pre-wired and assembled in power ratings between 1 kWatt to 100 kWatt.
PDF Icon   GRE1 Datasheet
Spacer

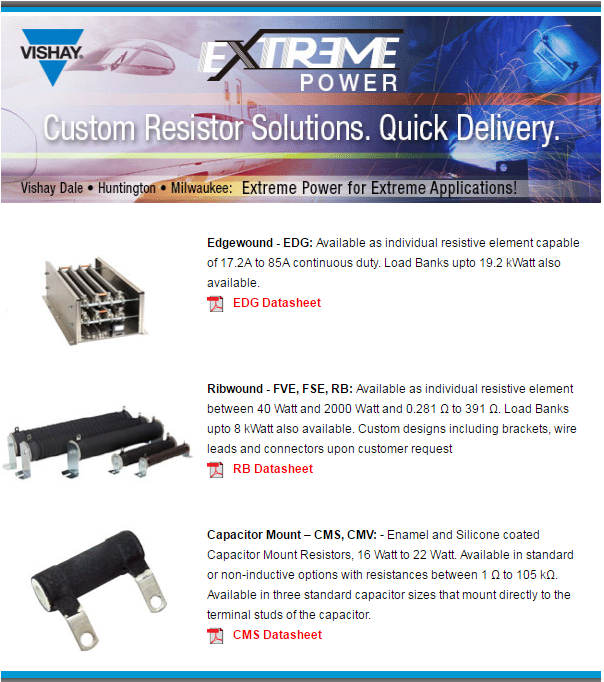

Edgewound - EDG
Edgewound - EDG: Available as individual resistive element capable of 17.2A to 85A continuous duty. Load Banks upto 19.2 kWatt also available.
PDF Icon   EDG Datasheet
Spacer
Metal Case - MCR
Metal Case - MCR: - Heat sink mounted wirewound resistors up to 125 Watt. Custom designs including wire leads and connectors upon customer request.
PDF Icon   MCR Datasheet
Spacer
Ribwound - FVE, FSE, RB: Available as individual resistive element between 40 Watt and 2000 Watt and 0.281 Ω to 391 Ω. Load Banks upto 8 kWatt also available. Custom designs including brackets, wire leads and connectors upon customer request
PDF Icon   RB Datasheet
Spacer
Roundwire – HL, FVT, FST: Enamel and Silicone coated resistors, 5 Watt to 225 Watt. Available in standard or non-inductive options with resistances between 0.10 Ω to 645 kΩ.
PDF Icon   HL Datasheet
Spacer
Capacitor Mount – CMS, CMV
Capacitor Mount – CMS, CMV: - Enamel and Silicone coated Capacitor Mount Resistors, 16 Watt to 22 Watt. Available in standard or non-inductive options with resistances between 1 Ω to 105 kΩ. Available in three standard capacitor sizes that mount directly to the terminal studs of the capacitor.
PDF Icon   CMS Datasheet
Spacer
 Circuit Board Mount – FS
Circuit Board Mount – FS: Silicone coated Printed Circuit Board (PCB) Mount Resistors, 3 Watt to 20 Watt. Available in standard or non-inductive options with resistances between 0.1 Ω to 95 kΩ.
PDF Icon   FS Datasheet
