Vishay MKP1848H DC-Link Film Capacitors
Vishay MKP1848H DC-Link Film Capacitors use metallized polypropylene film construction and support DC-link applications requiring stable capacitance under high humidity and temperature conditions. These capacitors feature AEC-Q200 qualification, high humidity robustness, high ripple current capability, low equivalent series inductance, and low equivalent series resistance in a radial package. The MKP1848H DC-Link capacitors feature a rated capacitance range from 1μF to 80μF and capacitance tolerances of ±5% and ±10%. These components have a maximum rated operating temperature of 105°C and self-inductance of < 1nH/mm. Typical applications include battery chargers, industrial and automotive power conversion systems, motor drives, renewable energy inverters, and outdoor equipment.
Features
- AEC-Q200 qualified construction
- Flame-retardant resin-sealed housing
- High humidity resistance
- High ripple current handling capability
- Low Equivalent Series Inductance (ESL)
- Low Equivalent Series Resistance (ESR)
- Metallized polypropylene film construction
- Radial lead configuration
- Self-healing dielectric technology

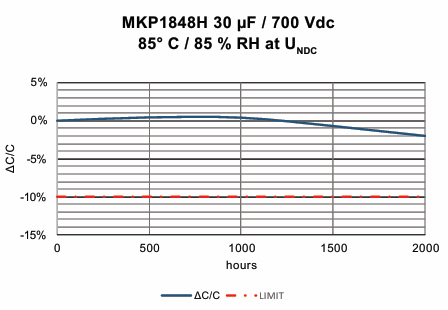

- Stable capacitance under humid conditions
- Temperature and humidity endurance tested
- Vishay Green compliant design
- Withstands harsh operating environments
Applications
- Automotive power conversion systems
- Battery charging systems
- EV off-board charging equipment
- EV on-board chargers
- Motor drive systems
- Outdoor electronic equipment
- Renewable energy inverters
- Uninterruptible Power Supplies (UPS)
Technical Specifications
| Parameters | Values |
|---|---|
| Rated Capacitance Range | 1μF to 80μF |
| Capacitance Tolerances | ±5% and ±10% |
| Maximum Rated Operating Temperature | 105°C |
| Self-inductance | < 1nH/mm |
| Voltage Range | 500Vdc to 1200Vdc |
