Smart HV Terminal and Connector Systems from TE Connectivity
Creating the best hybrid and electric vehicles for a fast-changing global market means getting your safety, quality and power levels right. We stock TE Connectivity’s broad line of AMP+ HV terminal and connector systems – a complete range of interfaces designed with touch-safe technology and shielding that prevents interference with other vehicle systems. AMP+ HV connectors and terminals are designed by TE Connectivity engineers to deliver the highest possible voltage levels with minimum packaging, thanks to increased creepage and clearance distances.
Browse our range of AMP+ HV Terminals and Connectors – In Stock Now

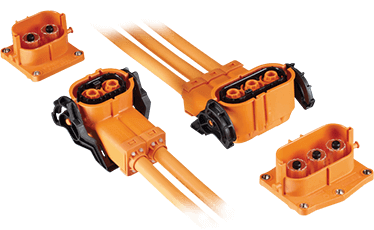

AMP+ HVA 280 Connectors and Headers
TE Connectivity’s AMP+ HVA 280 series delivers finger-proof, touch-safe two- or three-position connectors and headers with multiple latching options and an integrated high voltage interlock (HVIL). This product family includes a discrete header design unique to the industry, improving packaging and manufacturing efficiency with a two-stage floating latch for increased safety in the system. The HVA 280 family offers over 3,000 combination options for a wide variety of device and wiring harness applications, including on-board chargers, battery packs, DC/DC converters and high voltage power distribution systems.
AMP+ HVA 630 2-Position and 5-Position Connectors
The AMP+ HVA 630 product family’s touch-safe connectors provide connector position assurance and HVIL functionality. These sealed, shielded two-position DC connectors and headers are ideal for high voltage applications like onboard chargers. The HVF 630 2-Position’s industry-proven AMP MCP 6.3/4.8 standard contact system and shielded multicore wire allows currents of 40A at 140˚ C ambient temperature and voltages of up to 850 V DC.
The AMP+ HVA 630 5-position connector helps meet the battery capacity demands of plug-in hybrid and electric vehicles. Designed for multi-shielded 360˚ and with an integrated HVIL, this connector enables a three-phase charging current of 32A. It meets the IEC62196-2 type 2 standard for a maximum charging capacity of 22 kW.

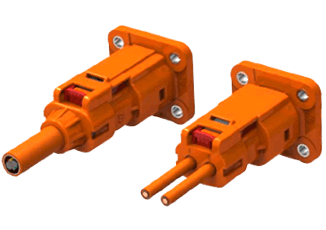

AMP+ HVP 800 Connectors
These shielded and sealed pluggable connectors are ideal for a variety of applications in electric vehicle infrastructure, such as connecting HV batteries and inverters or in charging applications. Depending on wire cross-section, the HVP 800 is capable of delivering up to 200A at 85˚ C.
AMP+ HVP 1100 Connectors
The AMP+ HVP 1100 is designed for flexibility with the options you need for a range of hybrid and EV device applications. This system provides a current-carrying capacity of up to 300A at 85˚ C, and a cable range between 50 mm2 and 950 mm2 individually shielded wire, making it useful in many high-voltage applications. The system provides an integrated internal HVIL for package size optimization.

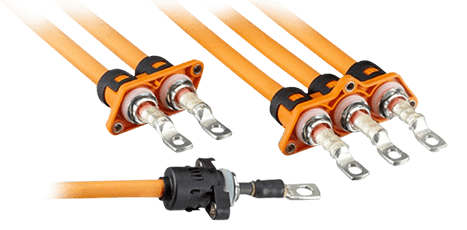

AMP+ IPT Shielded Ring Tongue Connectors
With 360˚ EMC shielding, these connectors are designed for powertrain applications in high-vibration environments, with current capacity up to 300A (depending on wire cross-section) at 105˚ C. The IPT is suited for use in e-motors, inverters or batteries designed for hybrid or electric vehicles.

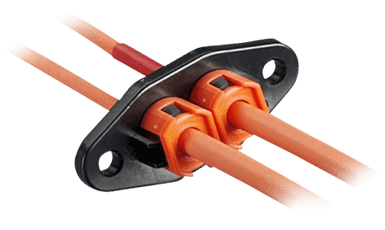

AMP+ Auxiliary Power Terminals
This high-voltage accessory/device interconnect is designed for electric and hybrid vehicles. TE Connectivity’s AMP+ 2-position auxiliary pigtail system provides a wire range from 2.5 mm2 to 6.0 mm2 with rated voltage up to 600V DC. AMP+ Auxiliary Power Terminals meet USCAR-2 specifications for engine vibration and provide 360˚ EMC shielding.
