KEMET MIL-PRF-20 Ceramic Through-Hole Capacitors

Search Mil-PRF20 CCR MLCCs

Info
Resources

Info

Axial

MIL-PRF-20 Ceramic Through-Hole Axial Capacitor:
Case Sizes Available:	C114, C124, C192, C202, C222
*Dielectrics:**	C0G, X7R
Voltages Available:	50V, 100V, 200V (Both Dielectrics)
Capacitances:	1pF to 82,000pF
Capacitance Tolerances:	C0G: ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% X7R: ±10%, ±20%, 0% +100%, -20% +80%
Operating Temperature:	-55ºC to +125ºC
Packaging:	12" Reel, Bulk Box, Bulk Bag
*As designated by the Electronics Industry Association

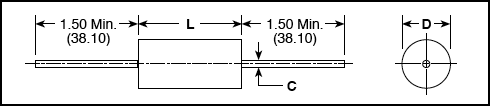

MIL-PRF-20 axial capacitor dimensions

Maximum Dimensions in Inches (& Millimeters):
Case Size:	Military Equicalent Styles	L Max	D Max	C Max
C114	CC75, CCR75	.160 ± .010 (4.06 ± .25)	.090 ± .010 (2.29 ± .25)	.020, + .000, -.003 (.51, + .00, -.08)
C124	CC76, CCR76	.250 ± .010 (6.35 ± .25)	.090 ± .010 (2.29 ± .25)	.020, + .000, -.003 (.51, + .00, -.08)
C192	CC77, CCR77	.390 ± .010 (9.91 ± .25)	.140 ± .010 (3.56 ± .25)	.025, + .002, -.002 (.64, + .05, -.05)
C202	CC78, CCR78	.500 ± .020 (12.70 ± .51)	.250 ± .015 (6.35 ± .38)	.025, + .002, -.002 (.64, + .05, -.05)
C222	CC79, CCR79	.690 ± .030 (17.53 ± .76)	.350 ± .020 (8.89 ± .51)	.025, + .002, -.002 (.64, + .05, -.05)

^ Back to Top ^

Radial

MIL-PRF 20 Ceramic Through-Hole Radial Capacitor:
Case Sizes Available:	C052, C056, C062, C006, C512, C522
*Dielectrics:**	C0G, X7R
Voltages Available:	50V, 100V, 200V (Both Dielectrics)
Capacitances:	1pF to 100,000pF
Capacitance Tolerances:	C0G: ±.5%, ±1%, ±2%, ±5%, ±10%, ±20% X7R: ±10%, ±20%, 0% +100%, -20% +80%
Operating Temperature:	-55ºC to +125ºC
Packaging:	12" Reel, Bulk Box, Bulk Bag
*As designated by the Electronics Industry Association

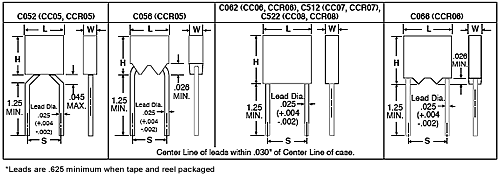

MIL-PRF-20 radial capacitor dimensions

^ Back to Top ^

Maximum Dimensions in Inches (& Millimeters):
Case Size:	Military Equicalent Styles	H Height	L Length	W Width	S Lead Spacing
C052/056	CC05, CCR05	.190 ± .010 (4.83 ± .25)	.190 ± .010 (4.83 ± .25)	.090, ± .010 (2.29, ± .25)	.200, ± .015 (5.08, ± .38)
C062/C066	CC06, CCR06	.290 ± .010 (7.37 ± .25)	.290 ± .010 (7.37 ± .25)	.090, ± .010 (2.29, + .25)	.200, ± .015 (5.08, + .38)
C512	CC07, CCR07	.480 ± .020 (12.19 ± .51)	.480 ± .020 (12.19 ± .51)	.140, ± .010 (3.56, ± .25)	.400, ± .020 (10.16 ± .51)
C522	CC08, CCR08	.480 ± .020 (12.19 ± .51)	.480 ± .020 (12.19 ± .51)	.240, ± .010 (6.10 + .25)	.400, ± .020 (10.16 + .51)

Resources

KEMET MIL-PRF-20 Ceramic Through-Hole Catalog (PDF)
