Dialight 515 Series Reverse Mount Optopipe LED Light Pipes
Dialight 515 Series Reverse Mount Optopipe LED Light Pipes are vertical panel mount light pipes that can be installed via press-fit from the rear of the panel when the design does not allow for access from the front of the enclosure. These LED light pipes are available in flat and domed lenses for optimal viewing angles and can be ordered in water clear or diffused lens finish. The LED light pipes are designed to operate with single and multi-color SMD LEDs and are used in applications when Printed Circuit Boards (PCB) are always parallel to the panel where the visible indication is planned.
Features
- Available in flat and domed lense for optimal viewing angle (with water clear or diffused lens finish)
- Designed for single and multi-color surface mount LEDs
- Halogen-free, RoHS complaint, UL94-V0 and UV stabilized
- Made with water clear polycarbonate
- Press fit mount
- Recommended drill size of 3.1mm metric drill or #31 drill (0.120")
Applications
- Audio/Video equipment
- Data centers and network equipment
- Electronic manufacturing equipment
- Fire alarm panels
- Handheld controls
- Industrial robots and controls
- Medical equipment
- Portable equipment analyzers
- Security system panels
- Smoke/Gas detectors
- Telecom rack equipment
Technical Specifications
| Parameters | Values |
|---|---|
| Operating temperature range | -40°C to +100°C |
| Minimum panel thickness | 0.040” (1.00mm) |
| Panel mount hole size | 0.121” (3.07mm) |
| Length range | 0.100" (2.54mm) to 1.000" (25.4mm) |
515 Reverse Mount Optopipe LED Light Pipes Dimension Diagrams

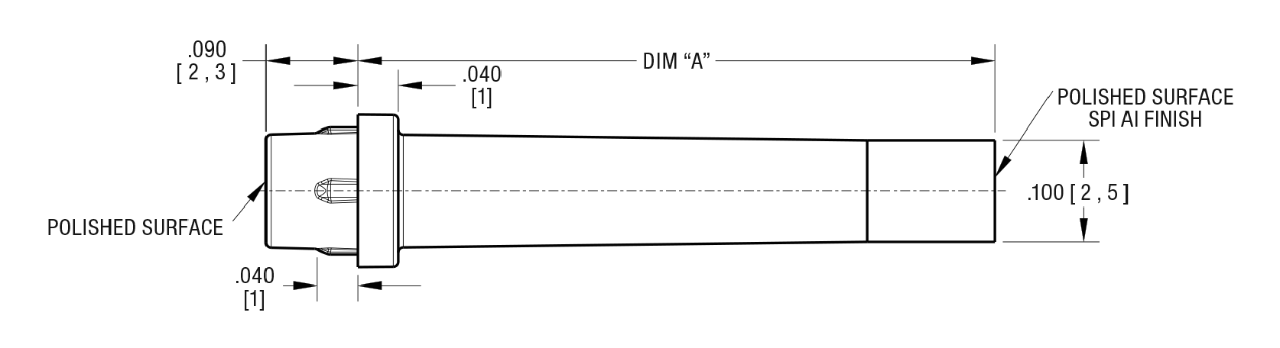

Dialight 515 Reverse Mount Optopipe Flat Water Clear LED Light Pipes (All Dimensions in inches (mm))

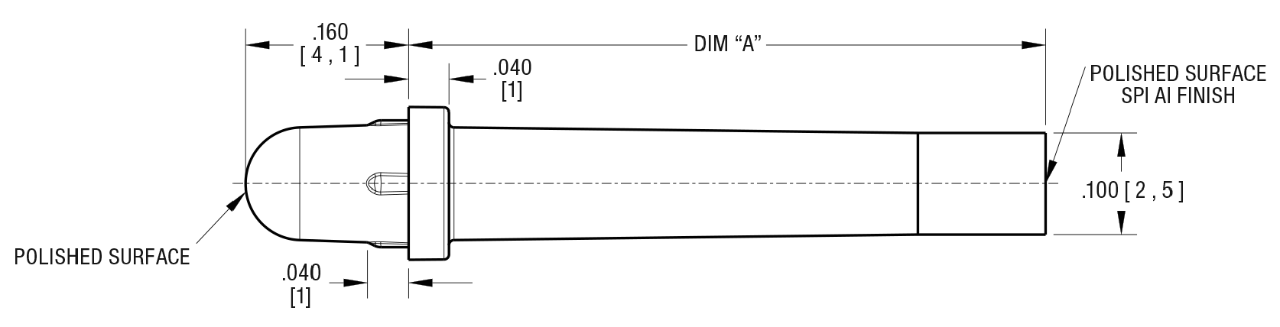

Dialight 515 Reverse Mount Optopipe Domed Water Clear LED Light Pipes (All Dimensions in inches (mm))

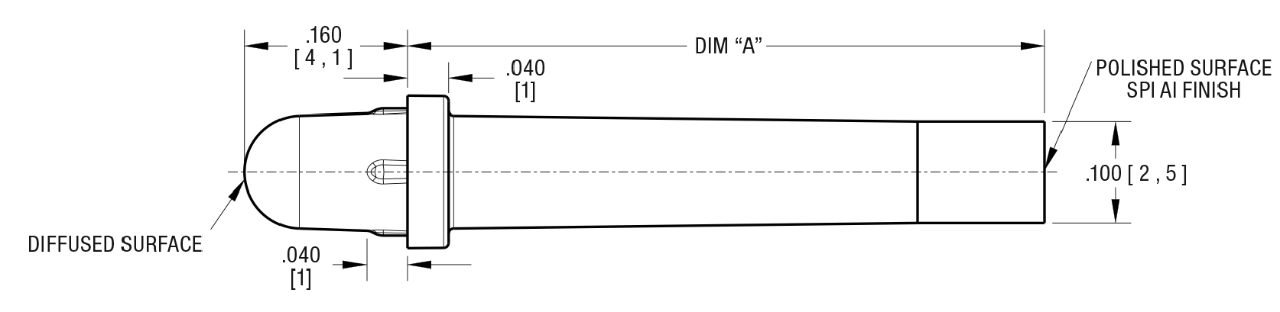

Dialight 515 Reverse Mount Optopipe Domed Diffused LED Light Pipes (All Dimensions in inches (mm))

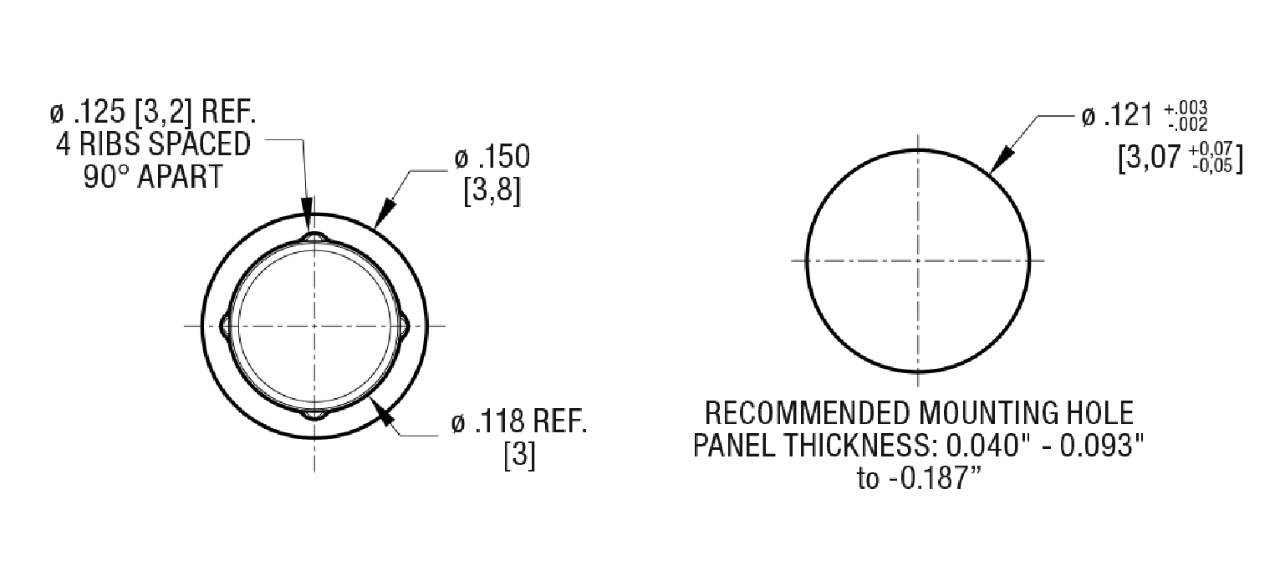

Dialight 515 Reverse Mount Optopipe LED Light Pipes Cross Section (All Dimensions in inches (mm))
